0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine
  • 0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine
  • 0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine
  • 0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine
  • 0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine
  • 0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine
  • 0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine

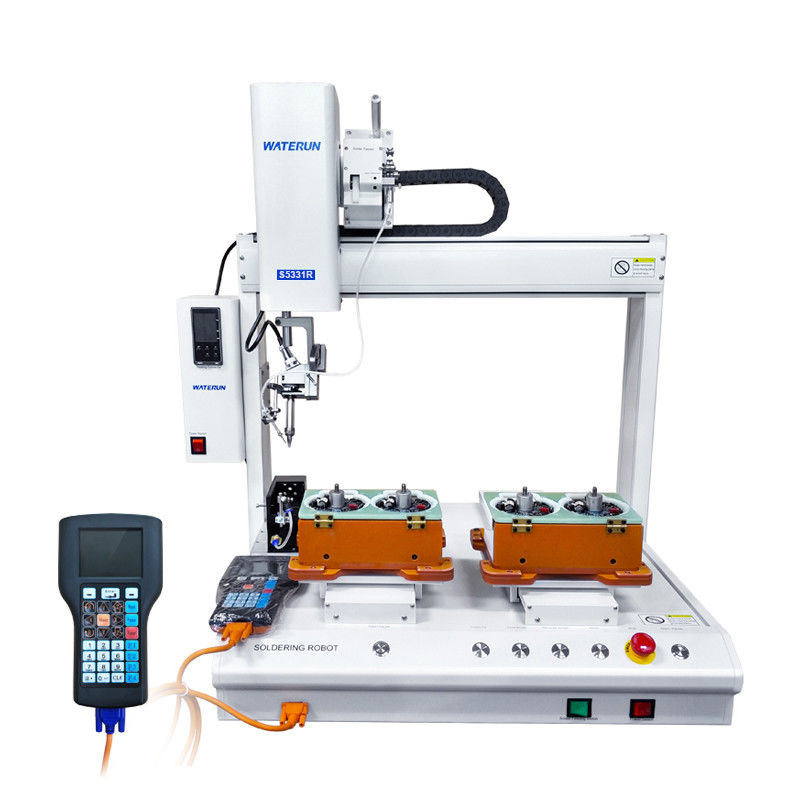

0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine

Place of Origin China
Brand Name Waterun
Certification CE
Model Number S5331R
Product Details
Name:
Desktop Soldering Robot
Heating Power:
150W Heater
Solder Wire Diameter:
0.5, 0.6, 0.8, 1.0, 1.2mm
Editing Mode:
Teaching Pendant
Preheating Temperature Range:
0 -500 C
Axis:
4 Axis
Operating Range:
X400*Y:400 *Z100mm
Dimensions:
720 X 700 X 810mm (W X D X H)
High Light:

0.4 MPA Auto Soldering Robot

,

0.6 MPA Auto Soldering Robot

,

Multifunctional Dip Soldering Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD3000 ~ 7000
Packaging Details
Auto Glue Dispenser machine 71 X 69 X 80 cm 78kgs
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
500 units per month
Product Description

Robotic Soldering Machine Toy PCB Soldering Robot With Double Y Axis​


Description:



Robotic Soldering Machine provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.




Parameters:



Model S5331R
Solder Joint Range X500* Y1/300*Y2/300*Z100mm(XxYxYxZ)
Solder Time 1.0~1.5s/point
Repeat Positioning Accuracy ±0.002mm
Solder Wire Diameter 0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Air source 0.4-0.6 MPA
Axis 5
Program Capacity 999 files, each file can save up to 999 points
External Dimensions(WxDxH) 820mm x 600mm x 800mm
Weight about 65kgs





Applications:



Electronic components, PCB, Power Strips, Digital Products, Connectors, Electronic Wires, Led Lighting, LCD Monitor, Display Module, Cell Phone & Accessories.

0.4-0.6 MPA Auto Soldering Robot , Multifunctional Dip Soldering Machine 0



Product Features:



1.Applicable for different products, soldering temperature can be set freely.
2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.
3. Numerically controlled temperature (static air condition: ±1℃)
4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.
5. In the soldering process, the solder tip has rapid heat recovery and a long life span.



Function Introduction:



1.With perfect soldering process settings, it has point soldering and slide soldering functions. The tin feeding speed can be automatically adjusted according to the working speed.
2.It can support the input of DXF files, which saves the intricate manual teaching, convenient and accurate.
3.It can support the positioning by Double Mark Points, which can eliminate the inaccuracy caused by the angle or position error of the product placed on the fixture.
4.With functions such as area array copy, translation computation, batch modification, single step, fully automatic and circulating operation, I/O input and output, etc.
5.After editing the movement parameters, you can download them to the controller through the serial port or save the data into the SD card of the Teaching Pendant. In this case, you can achieve offline running and copy/save the graphics across different devices.



Company Profile:

We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees.Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.



FAQ:



Q: Why choose us?
A: We are the manufacturer and provide overall solutions for processing equipment. We keep stock for standard equipment which can be shipped quickly. We can fully customize equipment according to customer requirements, such as ordering different machine size & appearance and brand for agents.



Q:This is the first time I use this kind of machine, is it easy to operate?
A: Don't worry, we guide installation and train operators for you as free of charge, also our engineer will setup machine & create programming well according to your product sample, you only need to press button "start" to let it work, furthermore, we prepared full English manual & operating videos for you to study step by step.



Q: How can we guarantee quality?
A: We implement strict incoming materials inspection and 100% tests before shipment.



Q: In case the machine can't work well, what should I do?
A: After the machine delivered, please inspect the machine within one week, if there's any problem in use of the machine itself and cannot fixed, we provide one year warranty and lifetime technical supports.



Q:What can you buy from us?
A:Screw fastening machine, soldering machine, glue dispensing machine etc....
