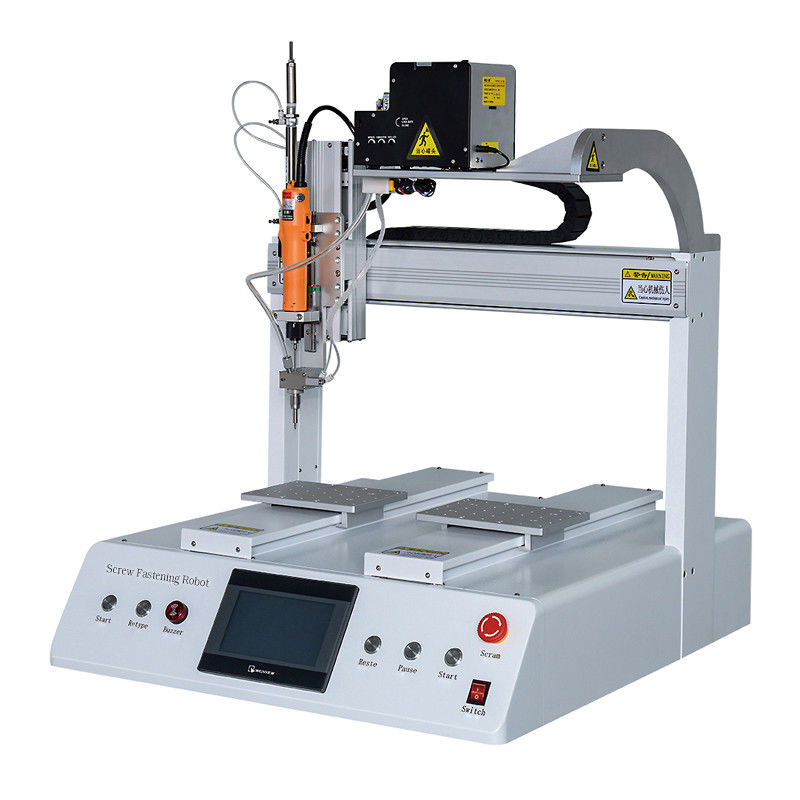

CE Durable Automatic Screwdriver Machine Robot Multi Station
  • CE Durable Automatic Screwdriver Machine Robot Multi Station
  • CE Durable Automatic Screwdriver Machine Robot Multi Station
  • CE Durable Automatic Screwdriver Machine Robot Multi Station

CE Durable Automatic Screwdriver Machine Robot Multi Station

Place of Origin China
Brand Name Waterun
Certification CE
Model Number WT-4223-2Y
Product Details
Operating Range:
X230*Y1/420/Y2/420*Z135mm(X*Y*Y*Z)
Accuracy:
±0.03mm
Screwing Time:
0.8~1.2s/pcs
Suitable Screw Size:
M1.5-M4(total Length Not Exceed 16mm)
Dimensions(mm):
810*720*900mm
Weight:
80kg
High Light:

CE Automatic Screwdriver Machine

,

Durable Automatic Screwdriver Machine

,

Multi Station Screw Driving Robot

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD3800 ~ 6000
Delivery Time
3-15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
300 units per month
Product Description

Factory Direct Automatic Screwdriver Locking Robot Screw Fasten Robot Drive Robot





Description:

This machine include two parts: electric screwdriver and automatic screw feeder. It puts the automatic screw feeder together with the electric screwdriver in order to achieve the complement of screw transmission and fix, which can greatly improve the production
efficiency and save manpower. Once the screwdriver is lifted after locking a screw, another screw will be sent continuously to continue the operation, which is particular suitable for the work piece of multi-station with the same specification.


Features:

1. More relax: single equipment for single worker, Just finished loading,Reduce the labor intensity of workers.

2. Reliability:Automatic alarm system, working >20 hours. 3. Lintelligent automatic equipment presents a new appearance of production line in factories.

4. Customization:Robot can be customized based on customers' requirements on products assembly.







CE Durable Automatic Screwdriver Machine Robot Multi Station 0







CE Durable Automatic Screwdriver Machine Robot Multi Station 1




Specification:

Type WT-4223-2Y
Locking screw range X230*Y1/420/Y2/420*Z135mm(X*Y*Y*Z)
Screw time 0.8~1.2s/p
Repeat accuracy ±0.03mm

Program capacity

15files, each file can save up 99points
Control system SCM+Touch screen
Input power 200V/50HZ
Air source 0.4-0.6MPA
Edit mode Teaching mode
Working temperature 5-40℃
Working humidity 20-90%
Applicable screw size M1.5-M4(total length not exceed 16mm)
Dimension 810*720*900mm
Weight 80kg




Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns  two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
