Portable Dispensing Valve Controller 220V 50HZ Multi Purpose
  • Portable Dispensing Valve Controller 220V 50HZ Multi Purpose
  • Portable Dispensing Valve Controller 220V 50HZ Multi Purpose
  • Portable Dispensing Valve Controller 220V 50HZ Multi Purpose

Portable Dispensing Valve Controller 220V 50HZ Multi Purpose

Place of Origin China
Brand Name Waterun
Certification CE
Model Number B-800
Product Details
Power Consumption:
8W
Min.Dispensing Volume:
0.01ml
Dimensions:
235 X 225 X 63mm
Weight:
2.2 Kg
High Light:

Portable Dispensing Valve Controller

,

Dispensing Valve Controller 220V

,

Multi Purpose Dispenser Valve Controller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD85 ~ 150
Packaging Details
Dispensing Controller 51 X 30 X 72 cm 25.6kgs
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
10000 units per month
Product Description

Multi-function Valve Controller Simply Operation Glue Dispenser





Describtion :

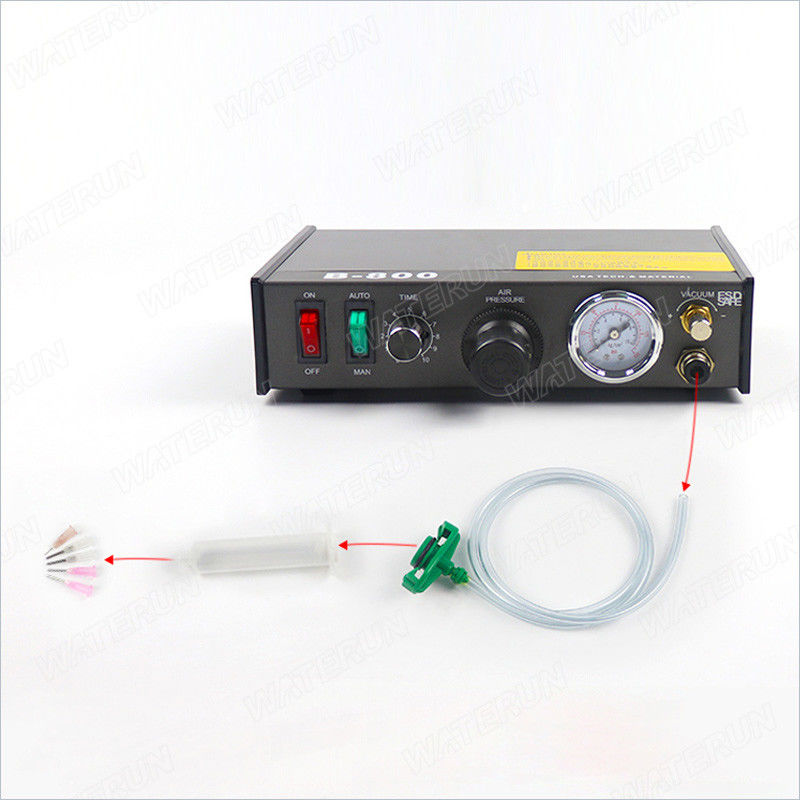

B-800 is a high precision syringe dispensing controller.It adopts LCD display on screen, key set dispensing time, digital display pressure value, built-in gas storage tank, can complete high-precision, high-consistency dispensing control.
Applicable glue:quick-drying glue, anaerobic glue, UV glue, liquid glue, paste glue, paint, ink, grease, lubricating oil, solder paste, etc.
No.
Item
Data
1
Dimensions
235mm×225mm×63mm
2
Weight
2.2kg
3
Input power
220V±10%/50HZ
4
Model
B-800
5
Dispensing timing range
0.01~99.99 s
6
Dispensing cycle range
0.001~999.999 s
7
Air pressure input
≤0.7Mpa
8
Air pressure output
0~0.7Mpa
9
Working frequency
Max. 600 times/min





Product Details:



Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 0



Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 1Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 2



Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 3



Features:



1.Suitable to control all kinds of pneumatic valve , such as diaphragm valve , firing pin valve Piston valve ,Spray valve ,Screw valve & with encoder motor screw valve ;
2.Dispenser controller timer ,pressure are all digital display ,and can be exactlly regulate;
3.It can set 10 changable , sequential or single dispensing points;

4.Diversification dispensing mode , as timing ,moving ,teaching and interrupting this four dispensing modes;
5.It can be store 10 dispensing programs which can flexibly respond to the change of diffrent points' dispensing quantity;
6.RS232 port and foot switch to trigger & control to achieve automatic dispensing;
7.With adjiust low pressure alarm function;



Why Choose Us?

1.Good quality and competitive price.

2,Any Inquires will be replied within 24 hours.

3,All of our products 100% inspection before shipment, we guarantee to use our products safety.

4,OEM/ODM orders are warmly preferred.

5,We own the best after-sale service.Any problems occur,our team will do our best to solve for customers.

6,Faster delivery, sample order in stock, and 3-7 days after bulk production.



Our Company:


Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 4

Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 5Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 6



Portable Dispensing Valve Controller 220V 50HZ Multi Purpose 7

We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc. Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
