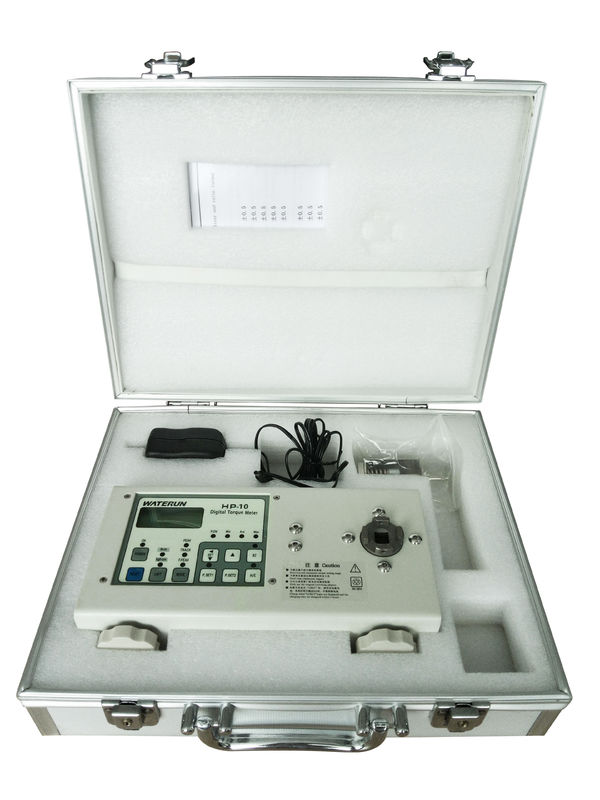

Intelligent type digital torque meter pratical screw torque gauge
Introduction:
No matter how superior screw tightening tools are, they do not function well unless the torque setting is controlled, our digital torque tester are instruments for setting the torque of electric screwdrivers, testing such tools as torque drivers and torque wrenches, measuring the torque of rotating parts, and also for systematizing extensive production control process with computers, Designed as easy-to-operate, accurate, and economical tools.
Product Detail:
1. Wide measuring range, high accuracy;
2. There are three measuring modes: Peak, Track, F. Peak;
3. It can display the maximum and average torque value.
A built-in o/p terminal can be connected to the computer for recalling, editing, and calculating measured datum.
Technical Details
Model | HP-10 | HP-50 | HP-100 | |
Measurement range
|
Kgf.cm | 0.15-10.00 | 0.75-50 | 1.5-100 |
N.m | 0.015-1.0 | 0.075-5 | 0.15-10 | |
Lbf.in | 0.19-9.00 | 0.75-45 | 1.5-90 | |
Accuracy | Within ± 0.5% |
HANDLING PRECAUTIONS:
Do not apply a torque above the maximum allowable load or damage will result. Do not tap on or apply a load to the acrylic display panel. Make zero adjustment to the strain gauge regularly while using the Torque Tester. The gauge is very sensitive to environmental conditions.
Avoid using the Tester in the following places:
1. Where water, oil or other liquid may splash
2. Where vibrations may occur and where dust or hot air may be emitted
3. Outdoors or where there are electric noises
4. In humidity (appropriate humidity of 35%-65%)
5. In high temperatures (appropriate temperature of 15-40 centigrade.)
6. Where the environmental conditions may cause functional failure or degrade performance
Application :
1. For measuring the torque setting of electric screwdrivers, torque drivers and torque wrenches
2,For inspecting torque of electric screwdrivers, torque drivers, and wrenches, as well as for Laboratory inspection and function control
3,For many other applications for which jig tools are devised.
