Screw Fastening Robot
>
|
|
| Place of Origin | China |
| Brand Name | Waterun |
| Certification | CE |
| Model Number | WT4223-2Y |
Description:

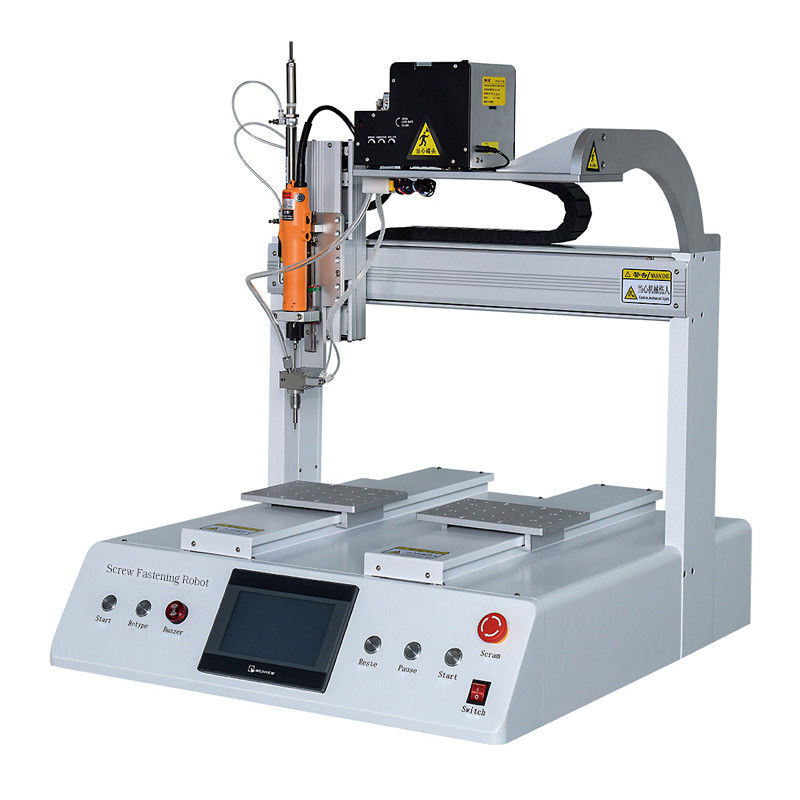

Double Y-axis automatic Screw Robot is a kind of newly designed popular machine which is quite easy to learn and operate by the teach pendant. With the interpolation function, all the axes can support for automatic locking screw control of gantry structure with two worktables. With the quite powerful software, the machine is quite easy to operate, one can learn and make program is a few minutes.
Specification:
| Type | WT-4223-2Y |
| Locking screw range | X230*Y1/420/Y2/420*Z135mm(X*Y*Y*Z) |
| Screw time | 0.8~1.2s/pcs |
| Repeat accuracy | ±0.03mm |
| Program capacity | 15files, each file can save up 99points |
| Control system | SCM+Touch screen |
| Input power | 200V/50HZ |
| Air source | 0.4-0.6MPA |
| Edit mode | Teaching mode |
| Working temperature | 5-40℃ |
| Working humidity | 20-90% |
| Applicable screw size | M1.5-M4(total length not exceed 16mm) |
| Dimension | 810*720*900mm |
| Weight | 80kg |
Competitive Advantage:
We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
