Electric Bolt Nut Screw Fastening Robot Practical For LED Lights
  • Electric Bolt Nut Screw Fastening Robot Practical For LED Lights
  • Electric Bolt Nut Screw Fastening Robot Practical For LED Lights
  • Electric Bolt Nut Screw Fastening Robot Practical For LED Lights
  • Electric Bolt Nut Screw Fastening Robot Practical For LED Lights

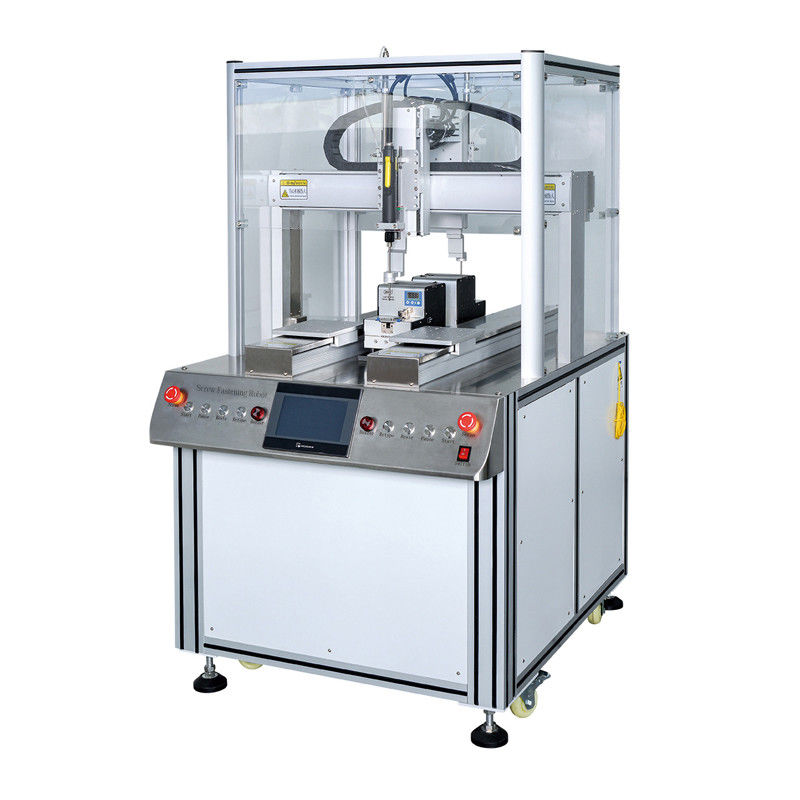

Electric Bolt Nut Screw Fastening Robot Practical For LED Lights

Place of Origin China
Brand Name Waterun
Certification CE
Model Number WT7024-2Z
Product Details
Operating Range:
X240 * Y1/700 * X240 * Y2/700 * Z135mm(Double Z Axis)
Accuracy:
±0.02mm
Dimensions(mm):
1100 X 800 X 1620mm
Weight:
120kg
High Light:

Electric Screw Fastening Robot

,

LED Lights Screw Fastening Robot

,

Practical Nut Bolt Tightening Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD3800 ~ 6000
Delivery Time
3-10 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability
300 units per month
Product Description

Electric led lights bolt nut fastening screw robot electric self-tapping screw machine



Description:

Automatic feeding screwdriver locking machine is widely used in various industries, such as mobile phones, hard drives, keyboards,toys, LCD / LED modules, communications equipment, electrical appliances, auto parts and other electronic processing assembly.



Features:

1.Automatic screw feeding, sorting and locking for various shapes screws.
2. Torsion precision and convenient adjustment, ensure the quality of screw locking.
3. Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4. Warning function when lack of screws.(Acousto-optic alarm)
5. High efficiency. No need to pick up screws, move screws and put screws. Just need to lock the screws aimed at the screw hole.
6. Sensor controls screws feeding one by one to avoid feeding repetition.
7. Can lock screws very fast, around lock 60 screws per minute.






Electric Bolt Nut Screw Fastening Robot Practical For LED Lights 0






Specification:

Model
WT7024-2Z
Operating Range (X * Y * Z)
X240 * Y1/700 * X240 * Y2/700 * Z135mm(Double Z
Axis)
Movement Speed
X/Y Axis: ≤500mm/s, Z Axis: ≤300mm/s
Repeatability Accuracy
±0.02mm
Screwing time for each screw
1.0~1.5s/piece
Suitable screw size
M1.5 – M4 (total screw length ≤ 20mm)
Control system
SCM + Touch Screen
Program capacity
15 files, each file can save up to 99 points
Air source
0.4 -0.6 Mpa
Dimensions
1100 x 800 x 1620mm
Weight
120 kgs



Competitive Advantage:
Electric Bolt Nut Screw Fastening Robot Practical For LED Lights 1

Electric Bolt Nut Screw Fastening Robot Practical For LED Lights 2

Electric Bolt Nut Screw Fastening Robot Practical For LED Lights 3

Electric Bolt Nut Screw Fastening Robot Practical For LED Lights 4






We, Shenzhen Waterun Technology is established in 2003, located in Shenzhen, China. We are a leading manufacturer of Automated Equipmnets for electronic assembly industry. Our products include screw fasterning robot, soldering robot, glue dispensing robot, fume extractors etc.Waterun owns two factories and one business & logistric centor and nearly 100 employees. Due to the good quality and good pricing, our products are getting popular in many countries in the world. We have been supplying to a number of Global top 500 companies. Our's goal is to become the preferred and most trusted partner for global electroinc assembly industry.
